Armoured Cable Manufacturers

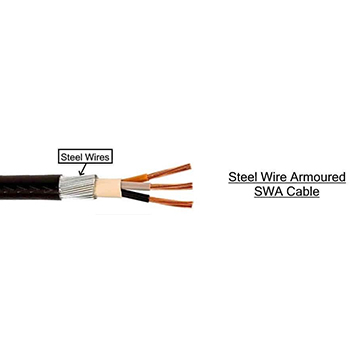

TECMAK Cables is a leading aluminium wire and steel wire armoured cable supplier offering a comprehensive range of robust and hard-wearing Low Voltage armoured and Medium Voltage armoured cables manufactured in accordance with British, European and International standards and specifications. In electrical power distribution, armoured cable usually means steel wire armoured cable (SWA) which is a hard-wearing power cable designed for the supply of mains electricity. It is one of a number of armoured electrical cables – which include 11 kV Cable and 33 kV Cable – and is found in underground systems, power networks and cable ducting.

Armoured Cable Manufacturers

Low Power Loss

Armoured Cable Manufacturers

Good Quality

Armoured Cable Manufacturers

Good Resistance

Armoured Cable Manufacturers

Best Insulation

Armoured Cable Manufacturers

Fireproof

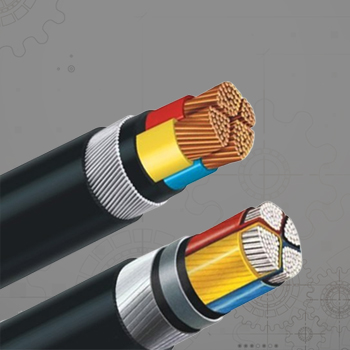

AWA & SWA ARMOURED CABLE CONSTRUCTION

Typically, the construction of an aluminium or steel wire armored cable comprises six components:

  • Conductor: plain stranded copper or aluminium
  • Insulation: materials such as cross-linked polyethylene (XLPE) provide high temperature resistance and excellent dielectric strength-providing enhanced electrical properties.
  • Bedding: a layer to create a protective barrier between the insulation and the armour.
  • Armour: a steel or aluminium armour provides mechanical protection to allow the cable to withstand the mechanical stresses to which it is exposed.
  • Sheath: the constituent parts of the cable are held together by a sheath offering a further level of protection. Black sheaths can be carbon-loaded for UV stability.
  • Voltage: voltage ratings of 600/1000V, 6.35/11kV and 19/33kV.

Armoured Cable

The construction of our various types of armoured cable (US spelling armored cable) differs according to their intended application and may also include steel tapes, protective screens and materials suited specifically to the installation conditions. We offer a comprehensive range of BASEC-approved armoured cables, manufactured in accordance with a number of British, European and International standards including BS5467, BS6622, BS6724, BS7835, BS EN 50267, IEC 60502 and BS EN 60332-1-2 (for single core cables).
